ZA0350V2 219mm 468kg Stroke Hydraulic Outboard Steering Kit With Pump

Name: ZA0350V2 219mm 468kg Stroke Hydraulic Outboard Steering Kit With Pump
Brand: Winibo
Price: 1 USD

Wholesale ZA0350V2 219mm 468kg Stroke Hydraulic Outboard Steering Kit With Pump from china suppliers

Brand Name : Winibo

Model Number : ZA0350V2

Certification : CE

Place of Origin : China

MOQ : 1set

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 1000sets per month

Delivery Time : 7-14days

Packaging Details : carton box

Cylinder Volume : 141.8cc

Output Force : 468 kg - 1032 lbs

Tube I.D : 35 mm - 1.38"

Piston I.D : 20 mm - 0.79"

Stroke : 219 mm - 8.62"

tube kits : 8 meters

Contact Now

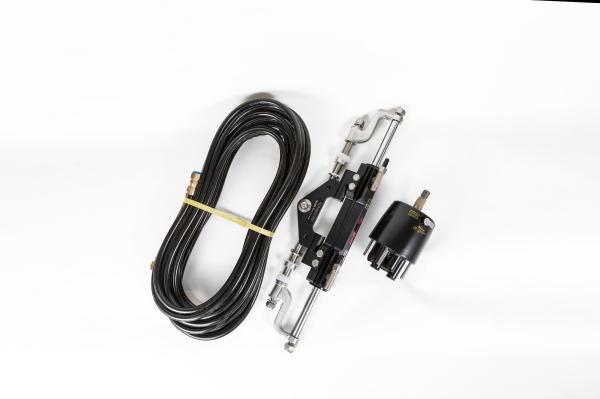

ZA0350V2 Hydraulic Outboard Steering Kit with Pump, Compact Cylinder, Tubing

High Performance Front Mount Cylinder

ZA0350V2 219mm 468kg Stroke Hydraulic Outboard Steering Kit With Pump

High Performance Front Mount Cylinder

Swiveling fittings for easy installation

High resistance stainless steel connection bolt

The number of turns lock-to-lock is equal port to starboard or vice-versa

For single engine single cylinder, up to 300 hp max

For dual engine single cylinder, up to 600 hp max

For dual engine dual cylinder, up to 600 hp max

For a second station added, need additional helm

Cylinder specification

Volume	141.8cc
Output Force	468 kg - 1032 lbs
Tube I.D	35 mm - 1.38"
Piston I.D	20 mm - 0.79"
Stroke	219 mm - 8.62"
3/8" (9.5mm) Fittings	For high pressure flex hose

Compact Front Mount Helm Pumps

Compact design

Built-in lock valve for positive rudder lock

Integral relief valve for over-pressure protection

7 plunger

3/4" tapered stainless shaft

Anodized cover

ORB ports

Displacement/Revolution 27 cc

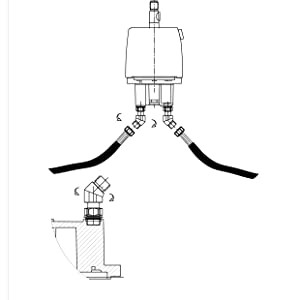

Adjustable ORB fittings

Adjustable O-ring (ORB) fittings simplify the installation process and will allow for simple reorientation of the fittings after installation

ORB fittings made in Chrome plated Copper.

Cut-to-length Tube

Tube kits in 24 feet. Can be shorten to the length you desire with quick connectors.

High Strength tubes made in 3 layer

The ends to the cylinder side are reinforced
